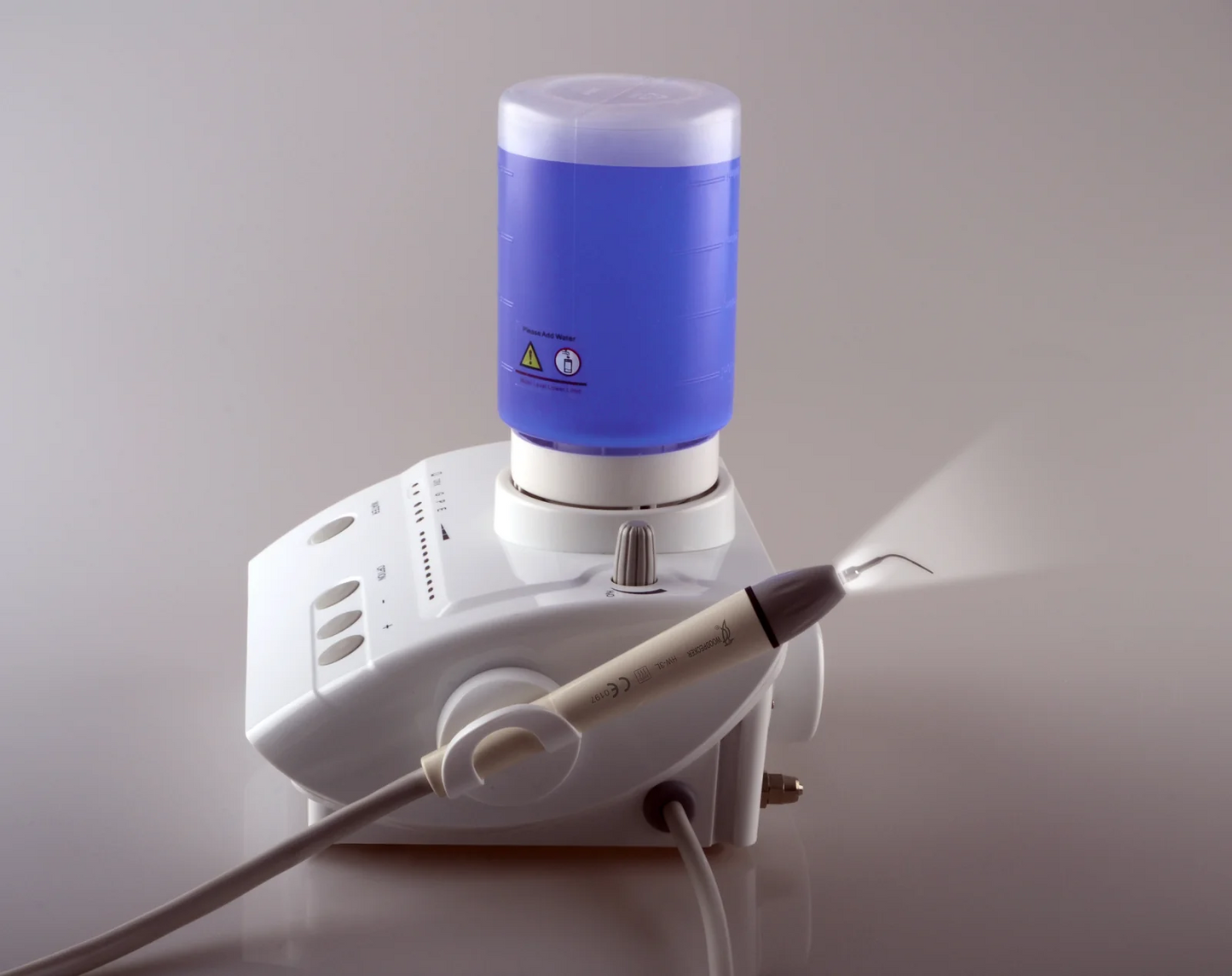

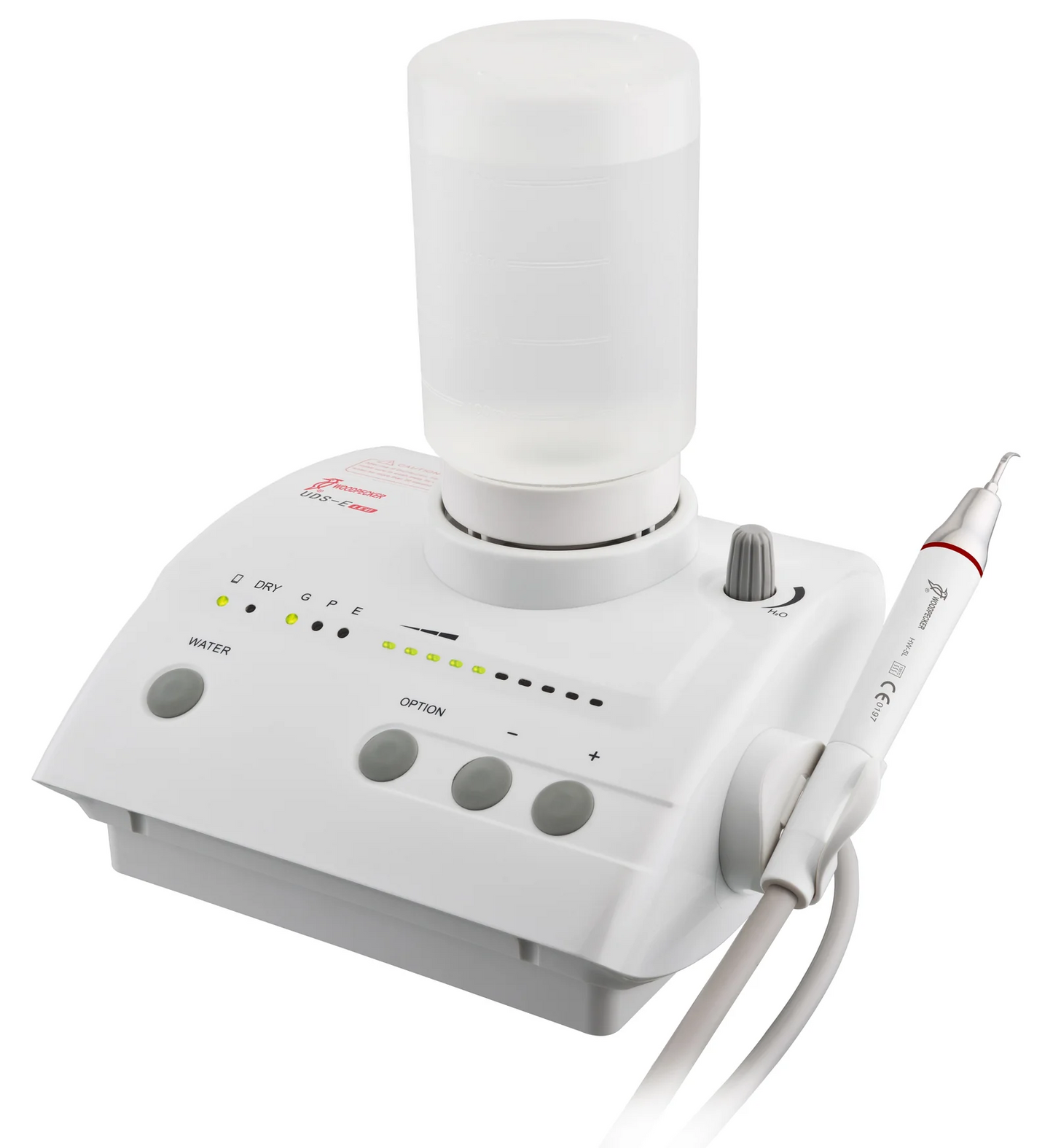

UDS-E

1. Available with optional LED
2. With auto-water supply function, easier operation.
3. The inner water pipe is made from antiseptic material, clinical fluids, such as Hydrogen peroxide, chlorhexidine and sodium Hypochlorite, etc, can be used perfectly under the mode of auto-water supply system so that the performance of perio and endo is improved dramatically.
4. The handpiece is detachable and can be autoclaved to the temperature of 135℃ and the pressure of 0.22MPa.
5. Automatic frequency tracking ensures that the machine always works on the best frequency and performs more steadily.
6. Controlled by PC, easy operation and more efficient for scaling.
7. Optional detachable handpiece with light, better visibility, autoclavable.
8. Scaling, perio, endo.
9. Clinical solutions are available for automatic water supply mode, improving the performance of perio and endo function dramatically.
10. Less heat from tip during operation. Improve comfort degree of patients.

Power input 110V~ 50Hz/60Hz
220 - 240V~ 50Hz/60Hz
Main unit input 24V~ 50Hz/60Hz 1.3A
Output power 3W ~ 20W
Frequency 28kHz ± 3kHz
Water pressure 0.1bar ~ 5bar(0.01MPa ~ 0.5MPa)
Main unit weight 1.35kg
Adapter weight 1.2kg
Dimensions 234mm×193mm×109mm
