MELAtherm 10

MELAtherm 10

With active drying and short operating times

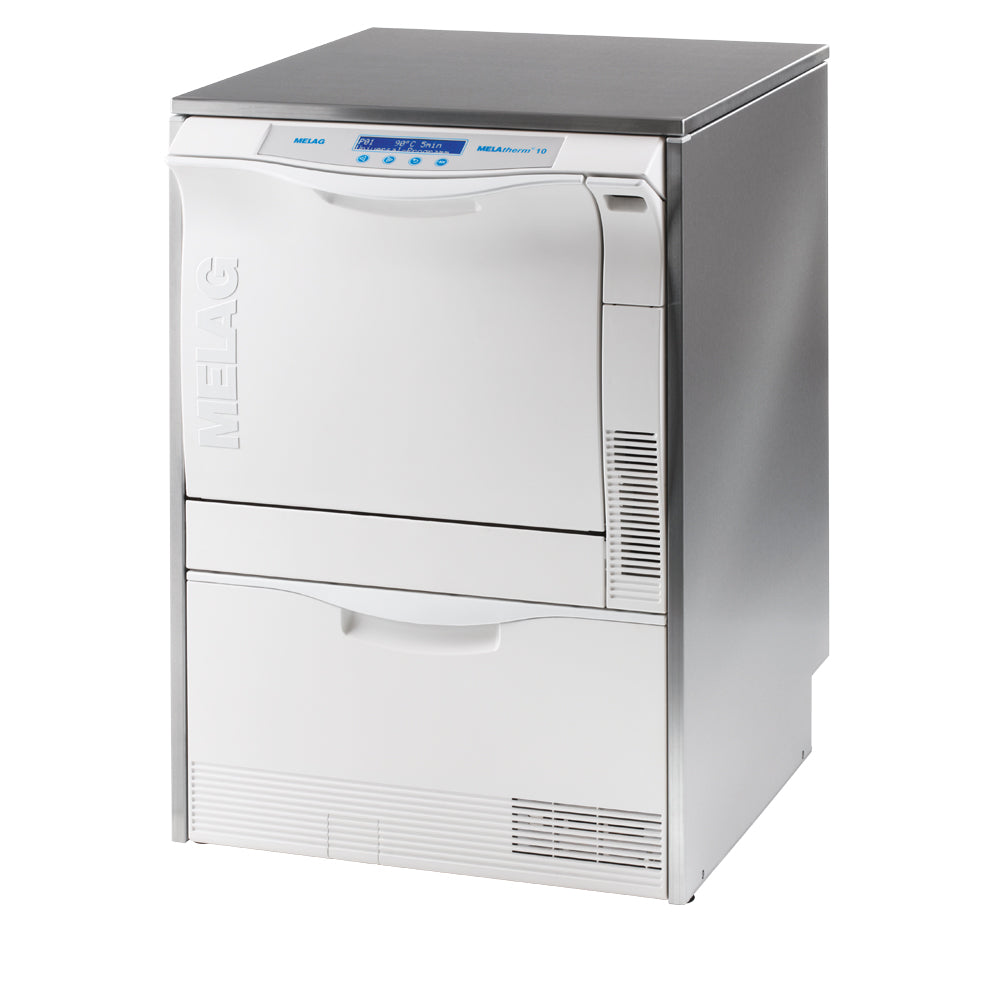

The MELAtherm 10 is a washer disinfector complying with the EN 15883 European Standard. It is ideally used in processing instruments by machine.

With compact external dimensions, the MELAtherm 10 offers full features without any additional charge:

  • Feeding process agents with the dosing unit
  • Batch documentation with the CF card or network
  • Active drying in accordance with the Standard

MELAtherm 10 automatically monitors the rotation of the rinse arms, the rinse pressure and the filter sieves. Errors in the program mode or during operation are thus prevented. MELAtherm 10 can be fitted in floor units without any problem, the standard width being only 60 cm.

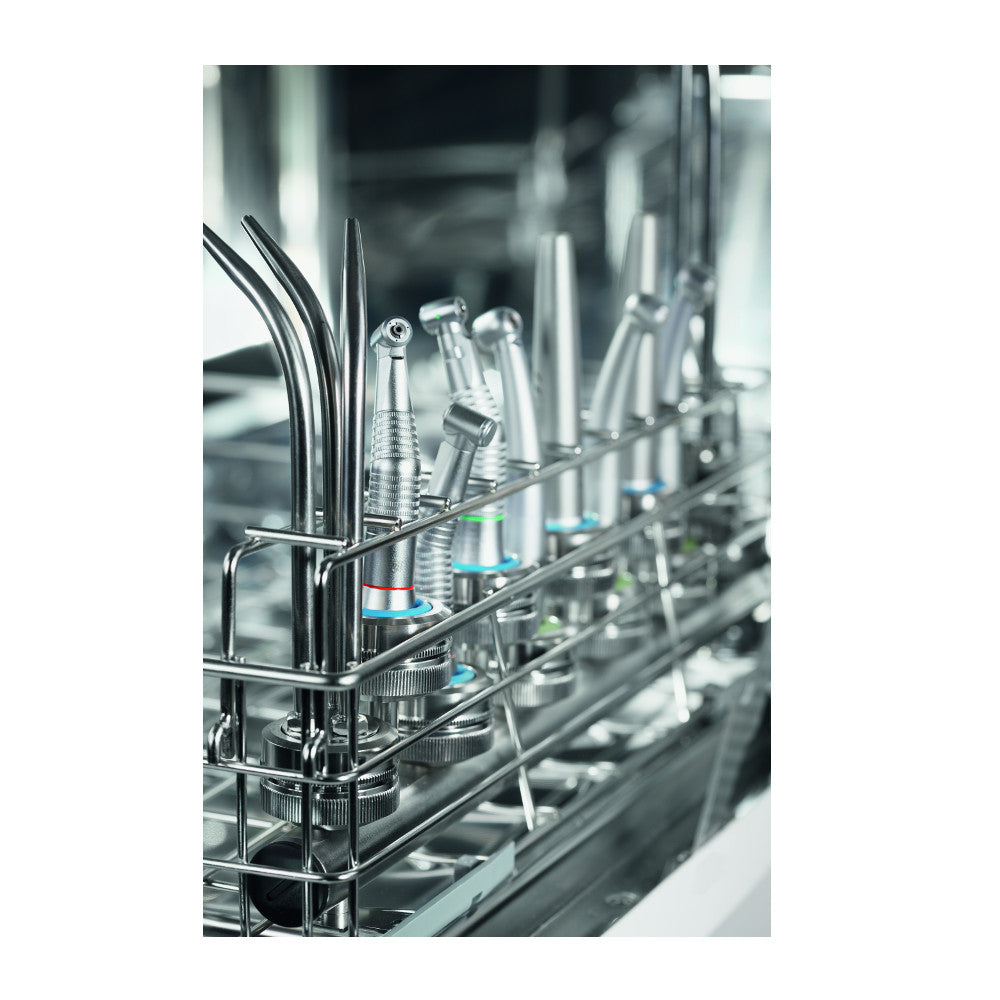

Should the MELAtherm 10 be free-standing next to the floor unit, MELAG offers a stainless steel cover plate. The optional floor unit, also available, facilitates ergonomic working height and creates additional storage space. MELAtherm 10 is equipped with a basis basket, with or without injector rail, at your option. Up to 11 hollow body instruments can be processed with the injector rail, e.g. suction tubes or dental handpieces and contra angles.

With active drying – the instruments must be dry. Active exterior and interior drying protects the instruments against corrosion and damage.
With a practice-optimized decontamination chamber – automatic treatment must be safe, ergonomic and affordable. The combination of its spatial concept with a versatile range of baskets helps save both time and money.
With integrated process agents and a metering module – integration of the process agents creates extra space, makes working easier and helps avoiding errors. No additional costs for the metering of the process agents.
With integrated documentation – with an integrated CF card writer and two network interfaces. No additional costs for documentation.

Technical data

  • Device dimensions (W x H x D): 59.8 × 81.8 (83.6 with cover plate) × 67.8 cm - fits under a 60 cm tabletop.
  • Weight: 79 kg / 85 kg with cover plate
  • Electrical connection: 3 N AC 400 V, 50 Hz, 3 × 16 A
  • Power consumption: 9.3 kW
  • Cold water / DI connection: 3/4"
  • Wastewater connection: DN21

For any information on our products or service please call (03) 9329 6276
